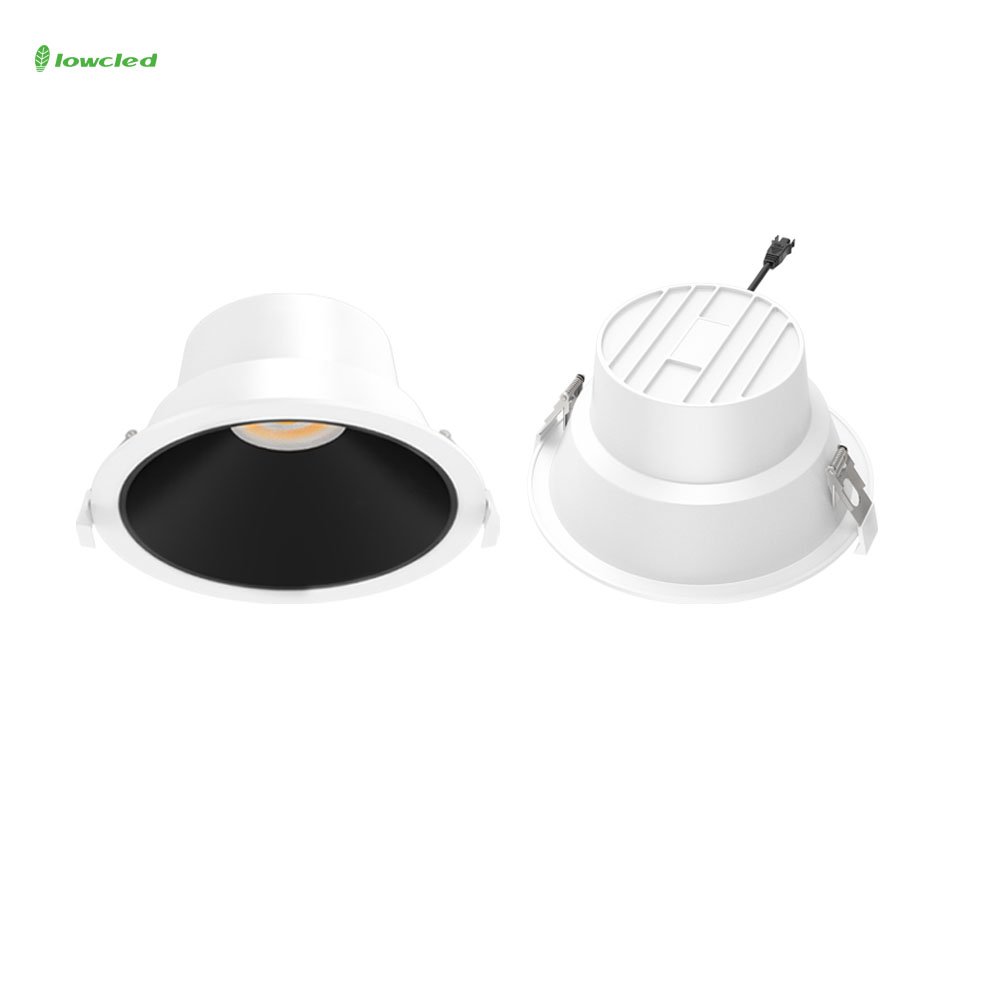

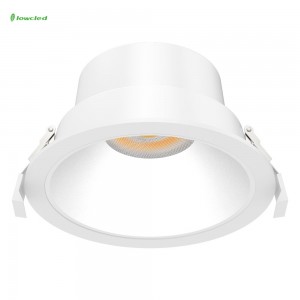

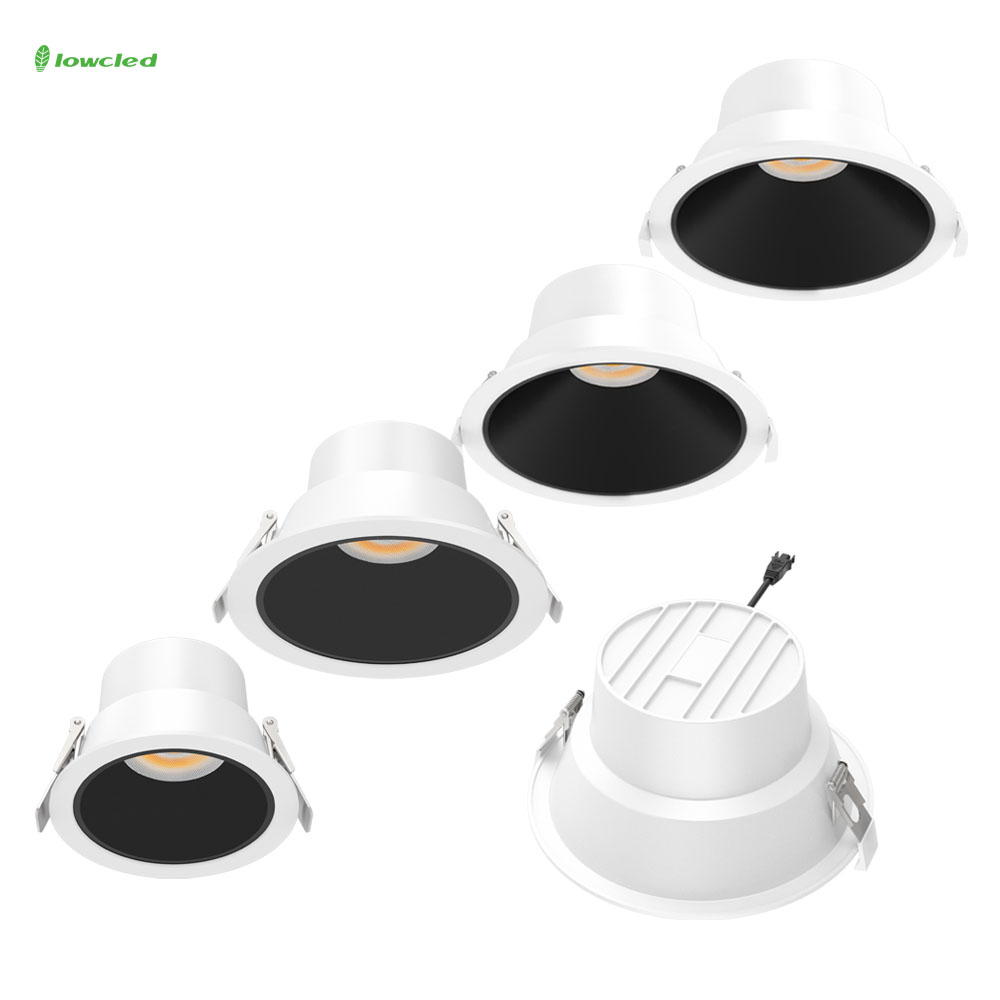

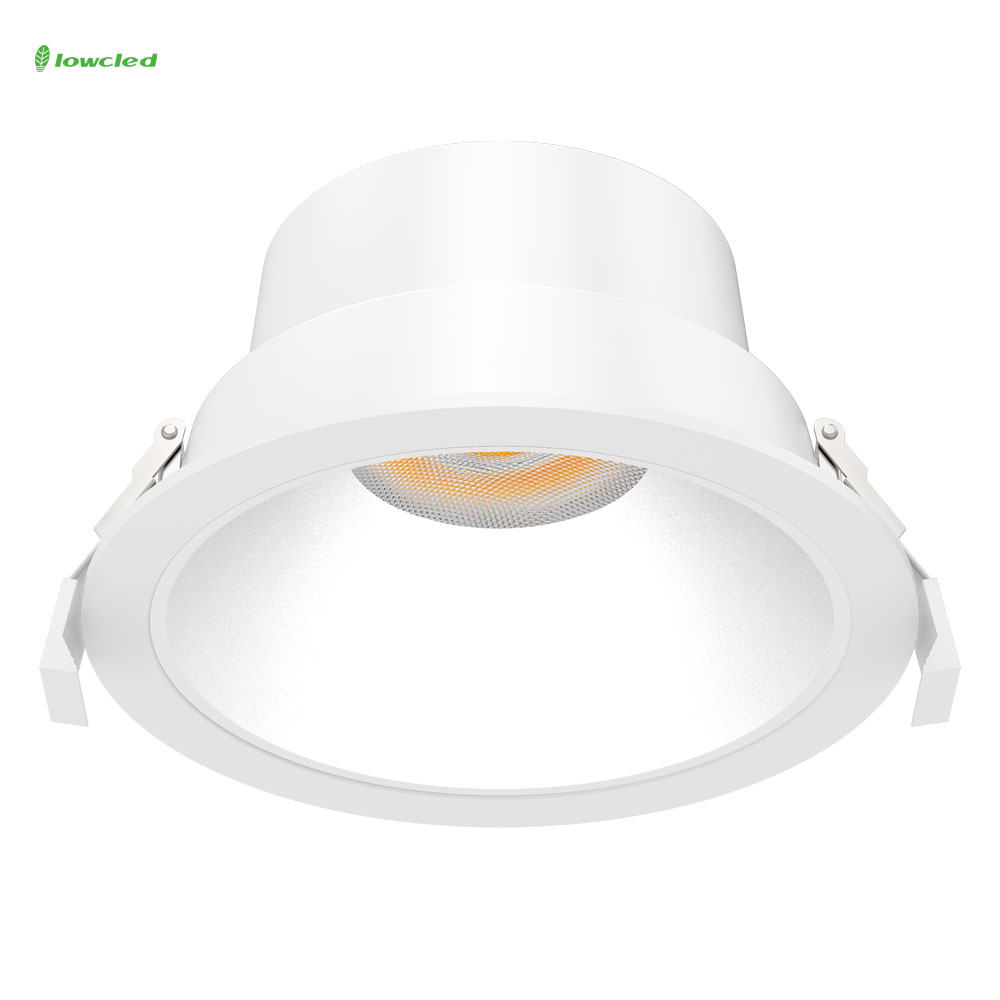

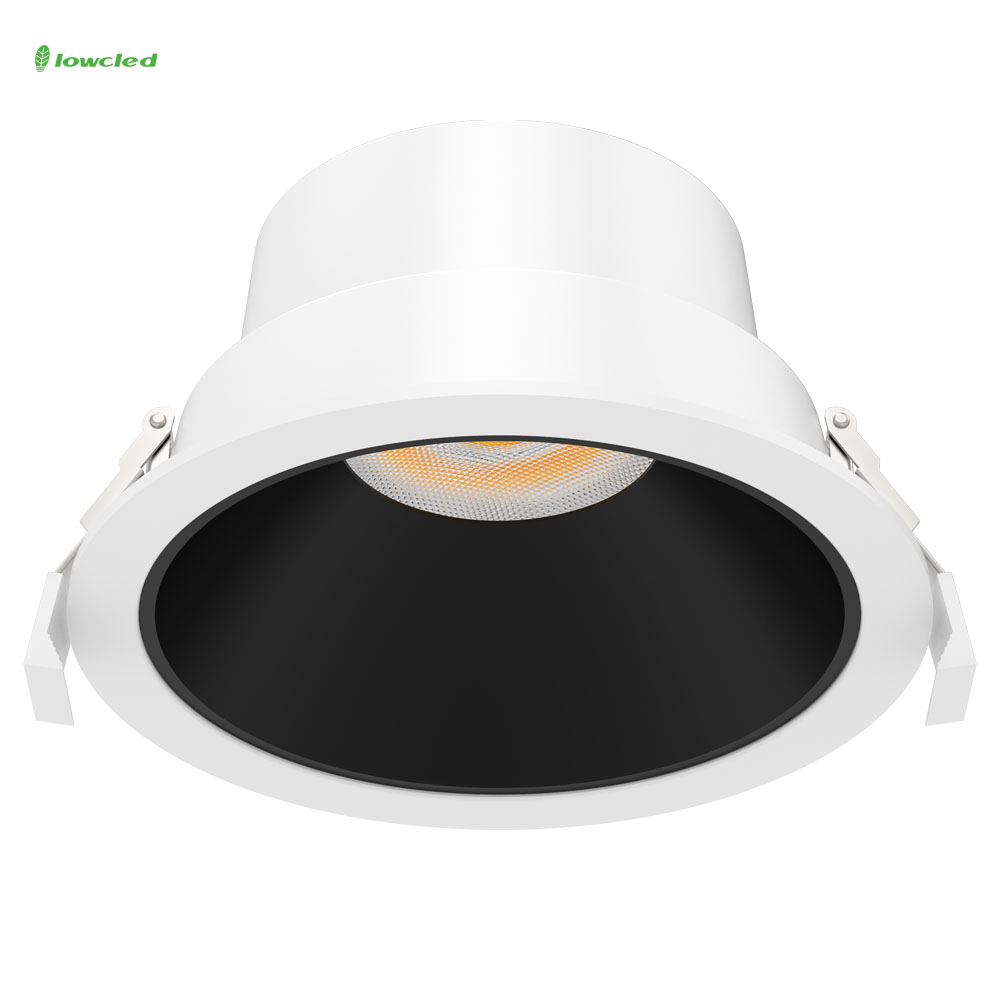

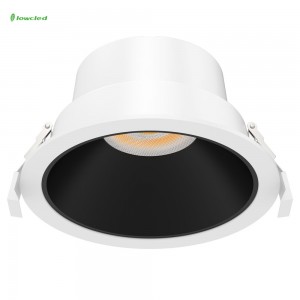

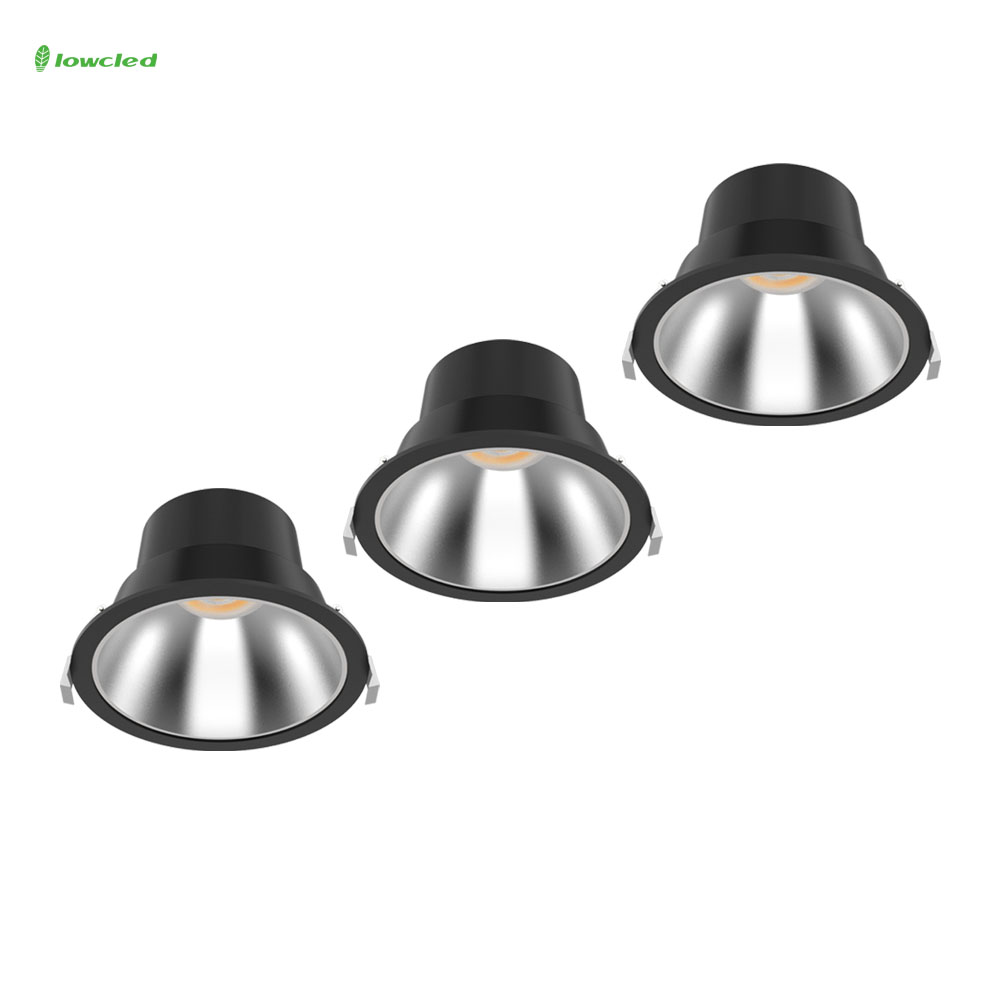

Round LED downlight D180
Features:
1. COB Round LED downlight.
2. The Kit includes a flicker-free driver and a die-casting aluminum integrated cooling radiator and solid mounting clips. The housing is finished with an internal reflector and tempered glass that provides glare free and uniform light distribution.
3. The housing is IP20 and completely closed so that insects can not penetrate.
4. With a lifespan of up to 50,000 hours this luminaire is ideal for lighting systems in shops, museums, art galleries, exhibition halls, libraries, bakeries and many other commercial or private applications.
Specification
| Series | D180 series | |
| Item | LL-DL180-20W-AG | LL-DL180-25W-AG |
| Power | 20W | 25W |
| Materials | ADC12 Die cast Aluminum | |
| Size | D180xH95mm | |
| Cut out | ∅155mm | |
| LED brand | Citizen, Bridgelux, CREE, Philips, Luminus, Tridonic etc | |
| CCT | 2700K,3000K,3500K,4000K,5000K,6500K | |
| CRI | CRI80+, CRI90+, CRI95+ CRI98+ | |
| SDCM | <3 | |
| Optics | PC Lens + reflector | |
| Beam angle | 15/24/38/60degree | |
| LED lumen | 100-180lm/W | |
| Lamp lumen | 80-130lm/W | |
| Driver | Tridonic, Philips, Osram, HEP, TCI, BOKE, Lifud | |
| Voltage | AC200-240V, AC100-240V | |
| Power factor | PF>0.9 | |
| Power | 20-30W | |
| Dimmable | DALI, TRIAC, 0/1-10V, ZigBee, BLE, 2.4G, DMX | |
| Color output | Single color, Tunable white, Dim to warm, Tri-color | |
| Pan/tilt range | Fixed | |

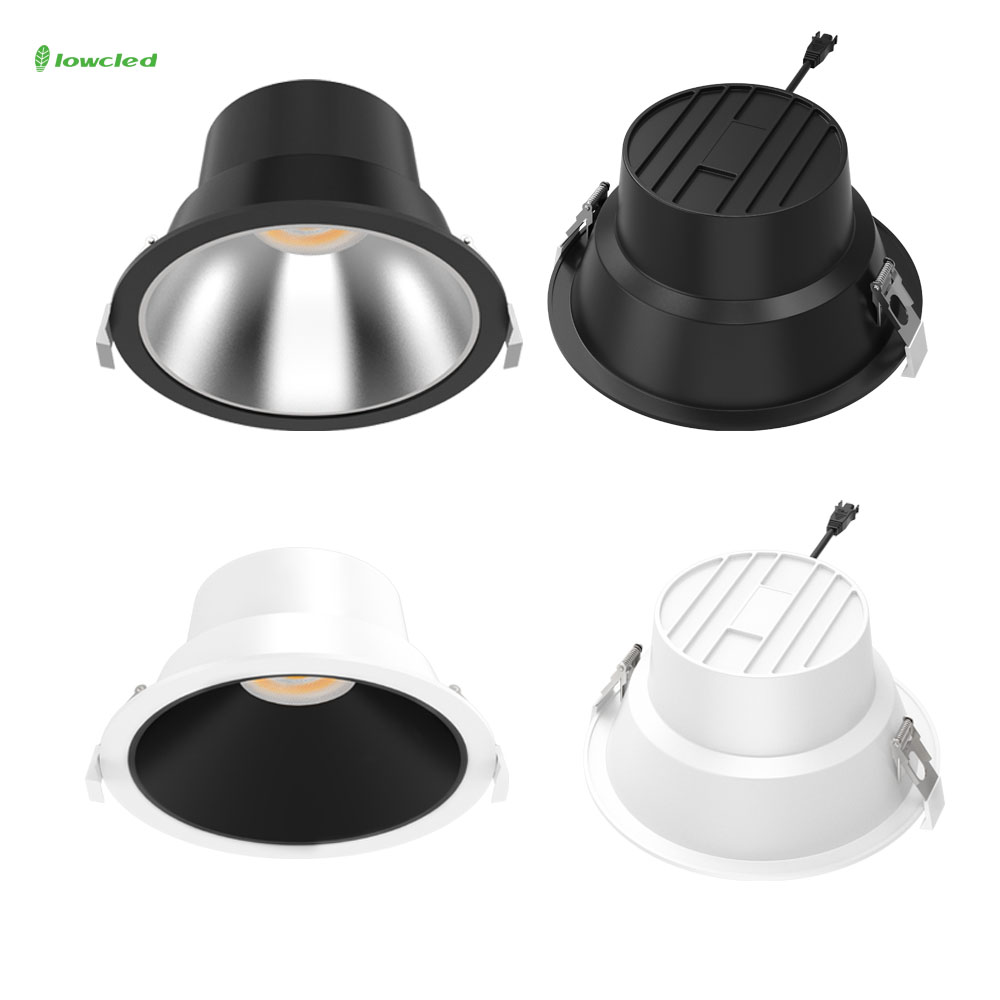

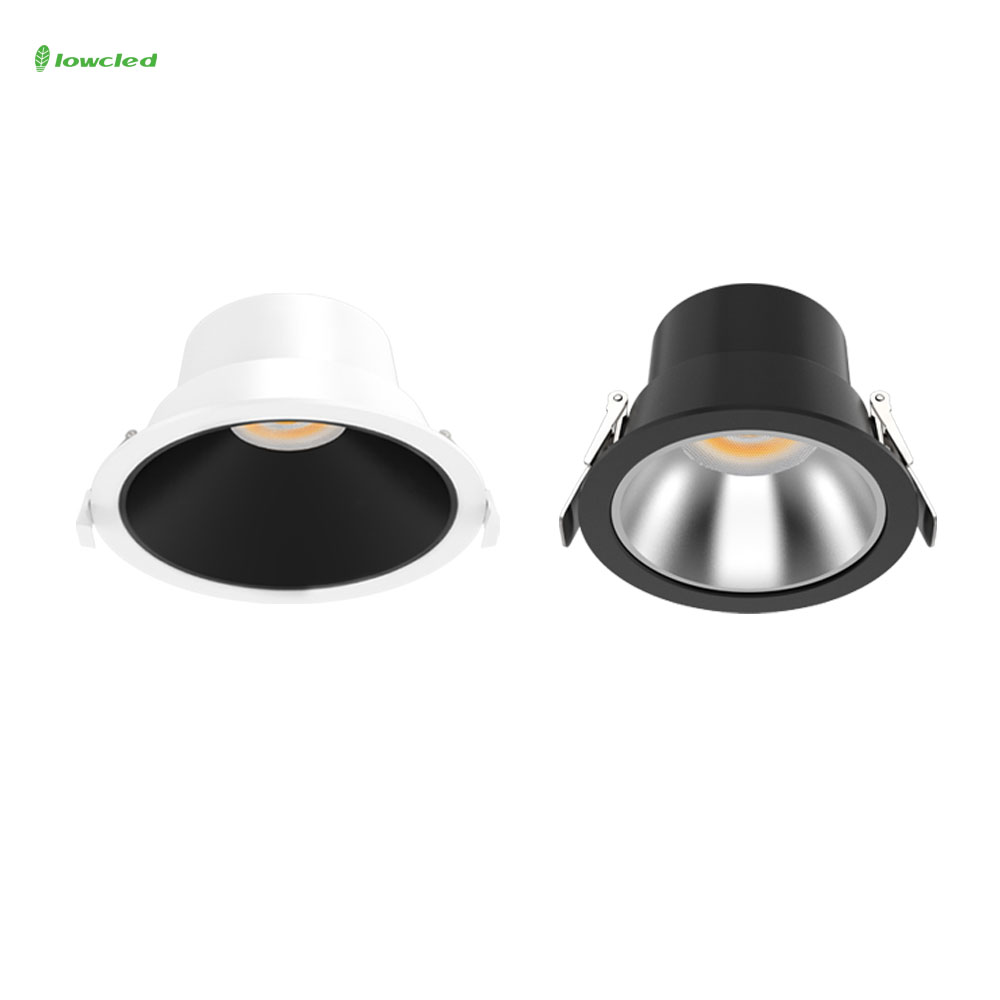

| Finish | Matt White, Matt Black | |
| Warranty | 5 years | |

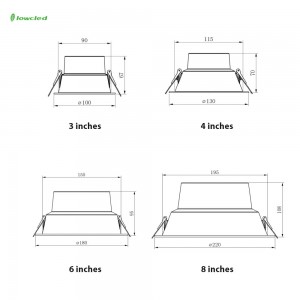

Size:
Unit: mm
Application:
LED downlight is widely used for places of high requirement of lighting, such as library, shopping mall, hotel, museum, gallery, experience center, commercial building, etc.
