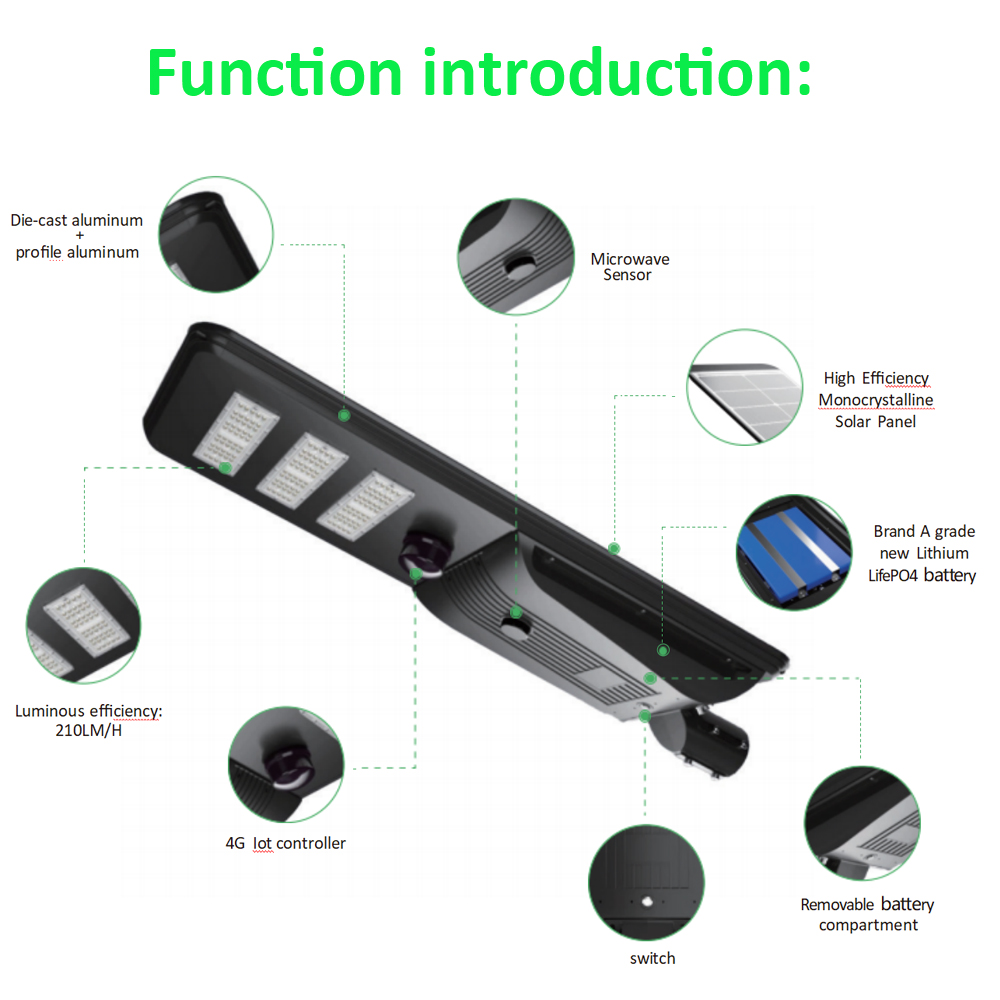

Features:

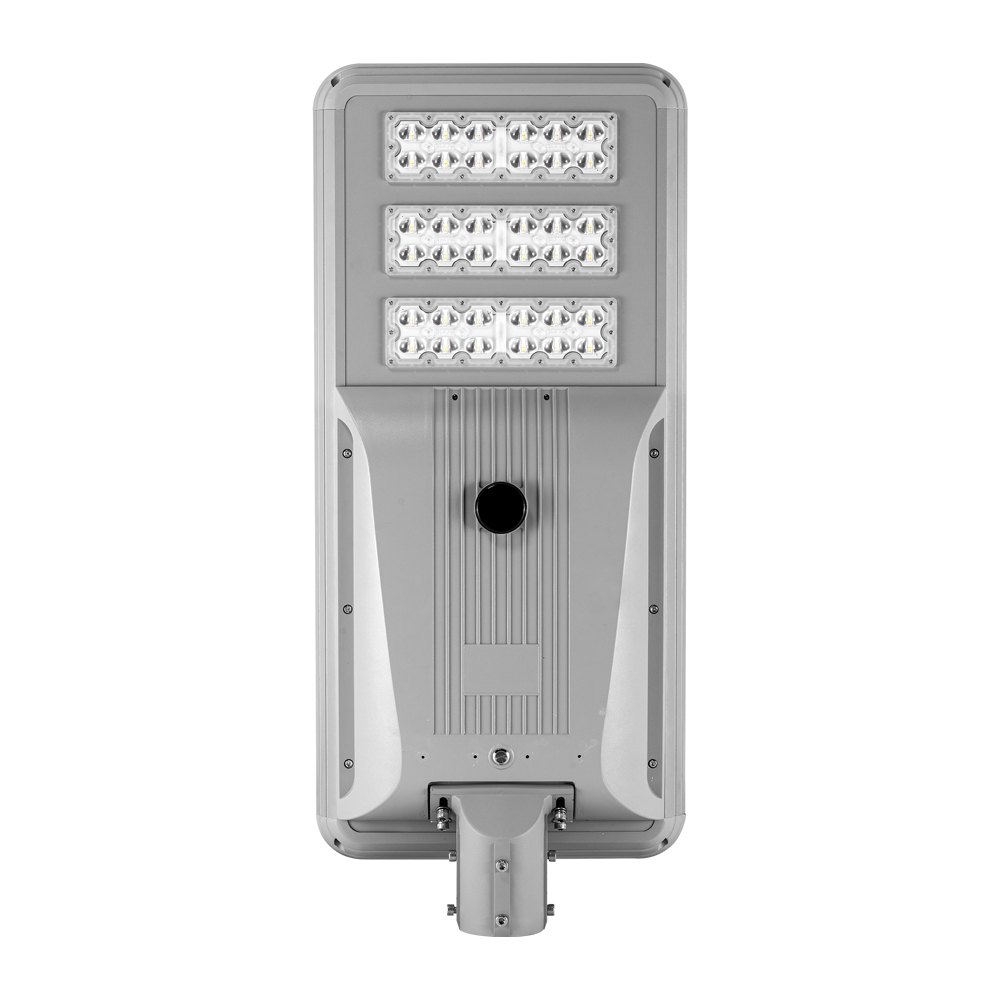

- All-in-one LED solar street light is a new generation solar street lighting which integrate all parts into one fixture to provide easy, flexible and convenient installation and application.
- 0 electricity fee, no wiring required, work continuously for 3-5 rainy and cloudy days.
- All in One solar lighting system designed for cost-effective lighting for small to medium spaces. Reliability and easy installation. All key components are integrated within the solar panel and light head.
- The design of the detachable battery compartment reduces maintenance difficulty and cost, which is conducive to the sustainable use of the product.
- It uses an intelligent MPPT controller to maximize solar power capture through a powerful and compact Lithium-Ion battery system, and a motion sensor to adjust light brightness and preserve battery power.
- Removable battery compartment for easy battery replacement, reducing maintenance time and maintenance costs.
- High brightness Lumileds Philips 3030 LED chips up to 200lm/w ,super brightness ,reduce light decay.
- Warranty: 3-5years.

Specification
Model NO. |
LL-ASSLB-40W |
LED |
Chipset |
SMD3030 LED |
Chipset Q'ty |
144 PCS |
Light Efficiency |
200 LM/W |
Lumen |
8000LM |
Color Temperature |
3000K-6500K |
CRI |
>70 |
LED Lifespan |
50000H |
Electrical characteristic |
Rated Power |
40W |
Solar Panel Power |
18V/60W |
Lithium Battery |
3.2V 100 AH |
Controller |
MPPT |
Illuminance value |
>25LUX |
Control method |
Motion sensor + Time control+Auto on/off |
Discharging Time |
12 hours a night, can be on for 3-5 rainy days |
Mechanical Specification |
Light body size |
878*408*130mm |
Net Weight |
11.5 kg |
Mounting Height |
6-8 M |
Packing Information |
Q'ty/carton |
1 set / carton |
Carton Size |
1100*460*130mm |
Gross Weight |
13.5 kg |

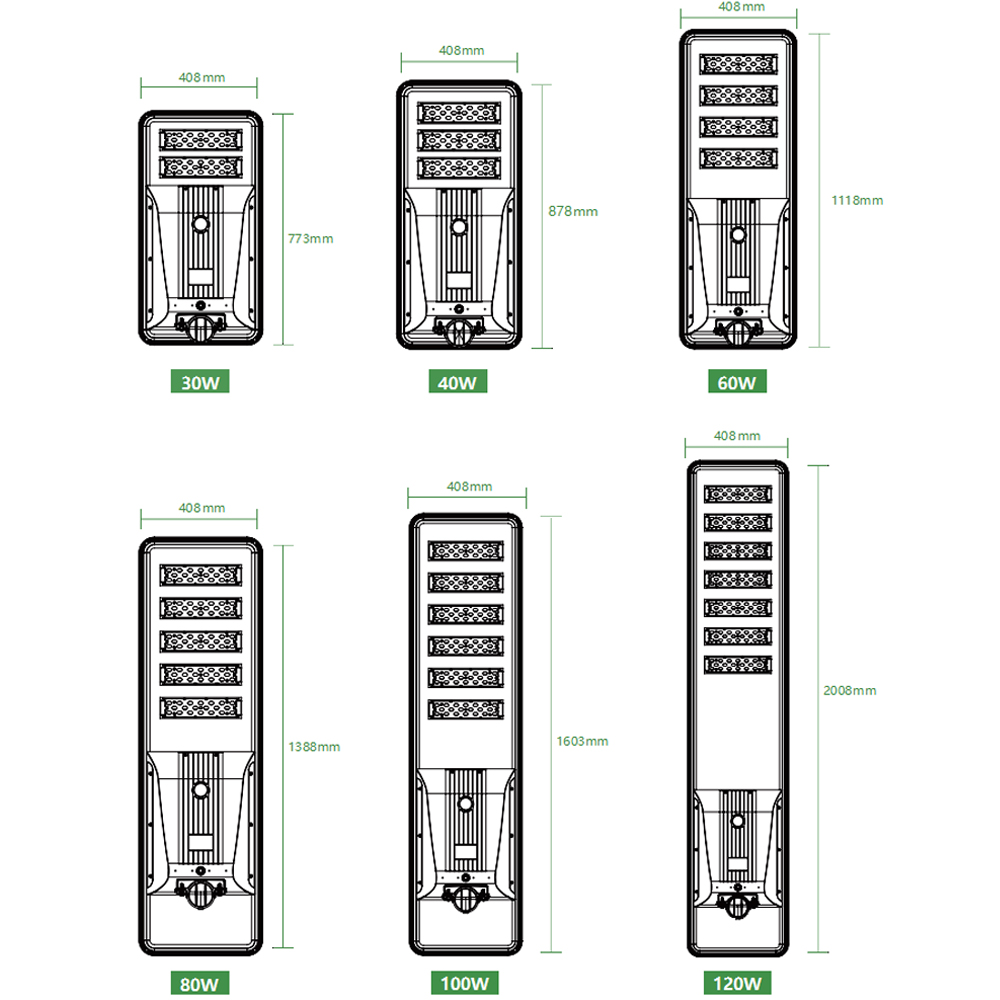

Size:

Unit: mm
Application:
All in one solar led street light is used for Courtyard, Garden, Park, Street, Roadway, pathway, Parking Lot, Private road, Sidewalk, Public square, plaza, Campus, Farm & Ranch, Perimeter Security, Wildlife area, Remote Area, Military Base, and so on.
