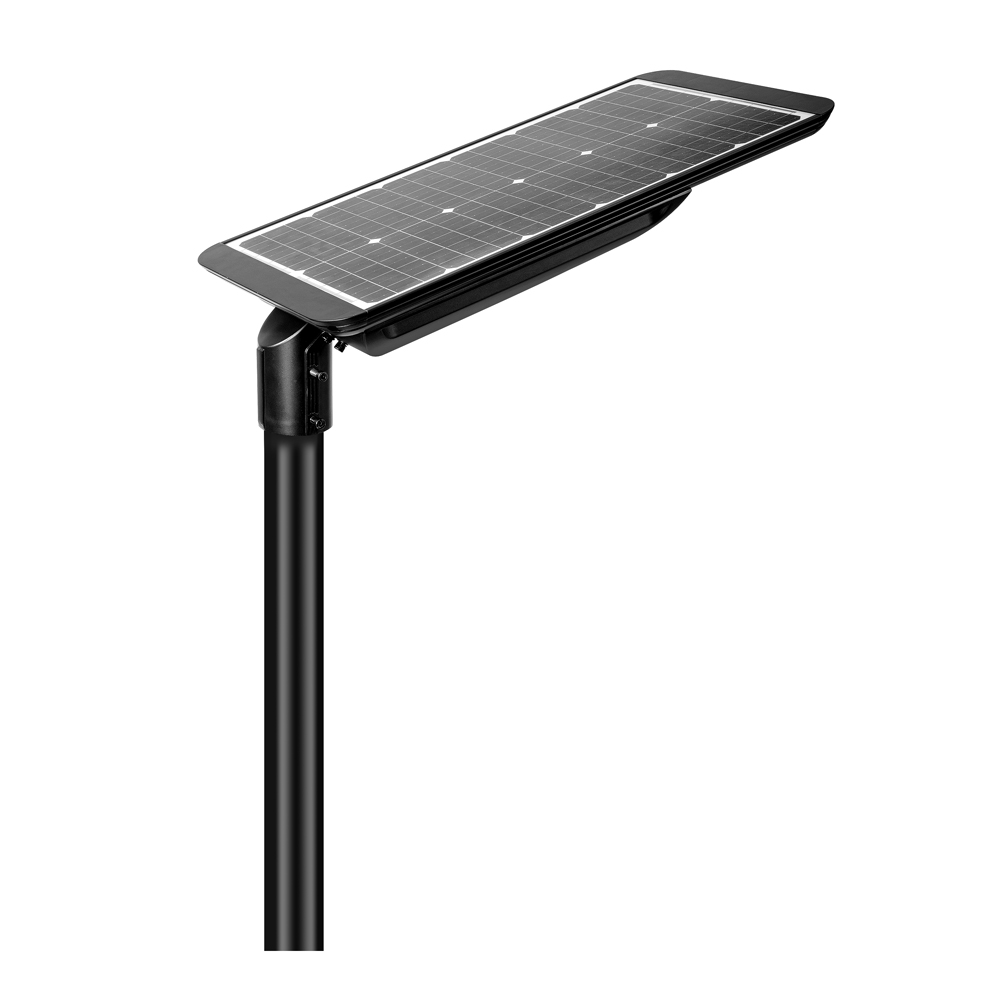

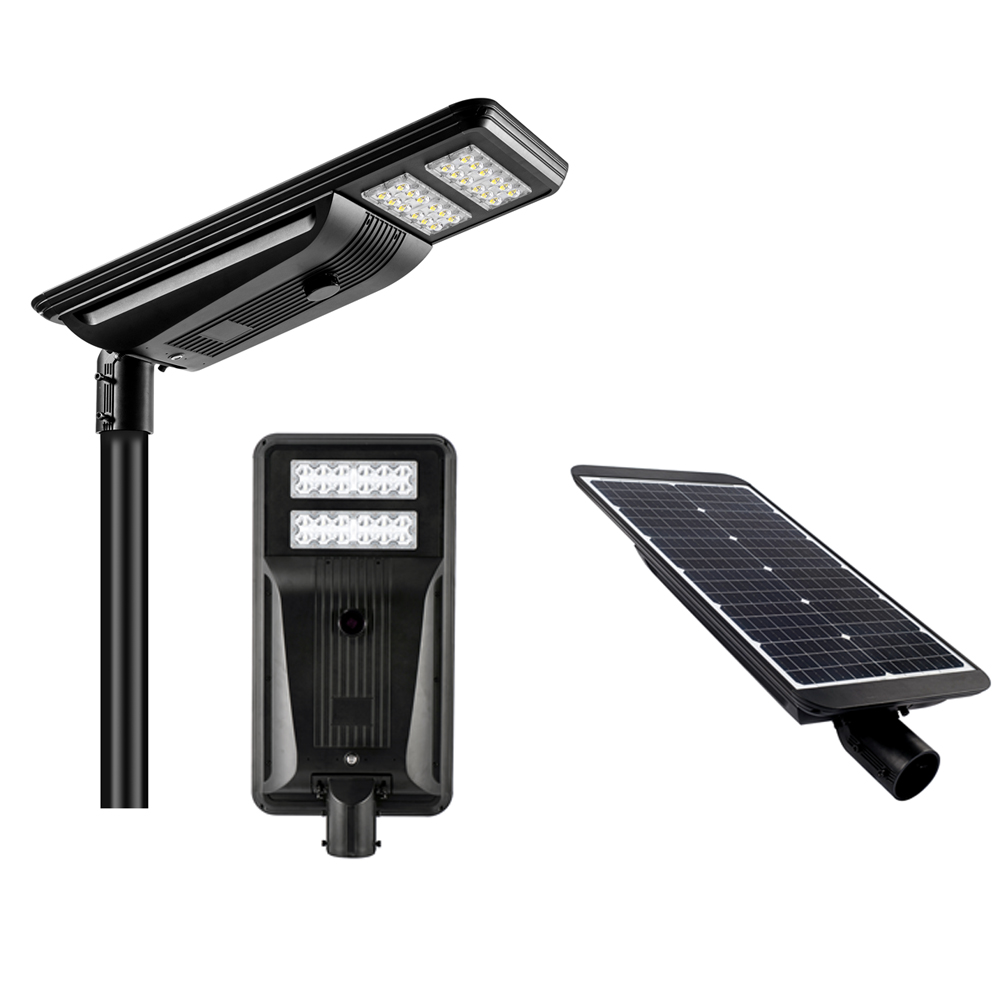

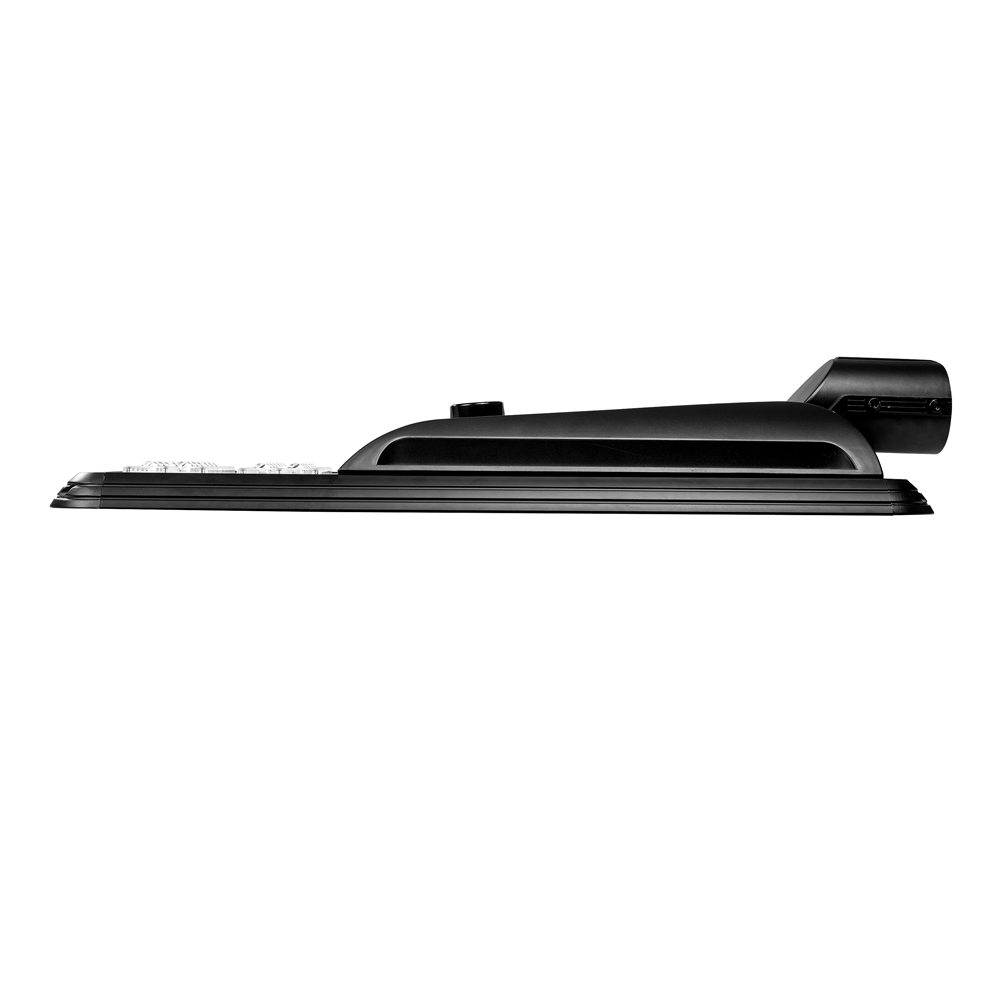

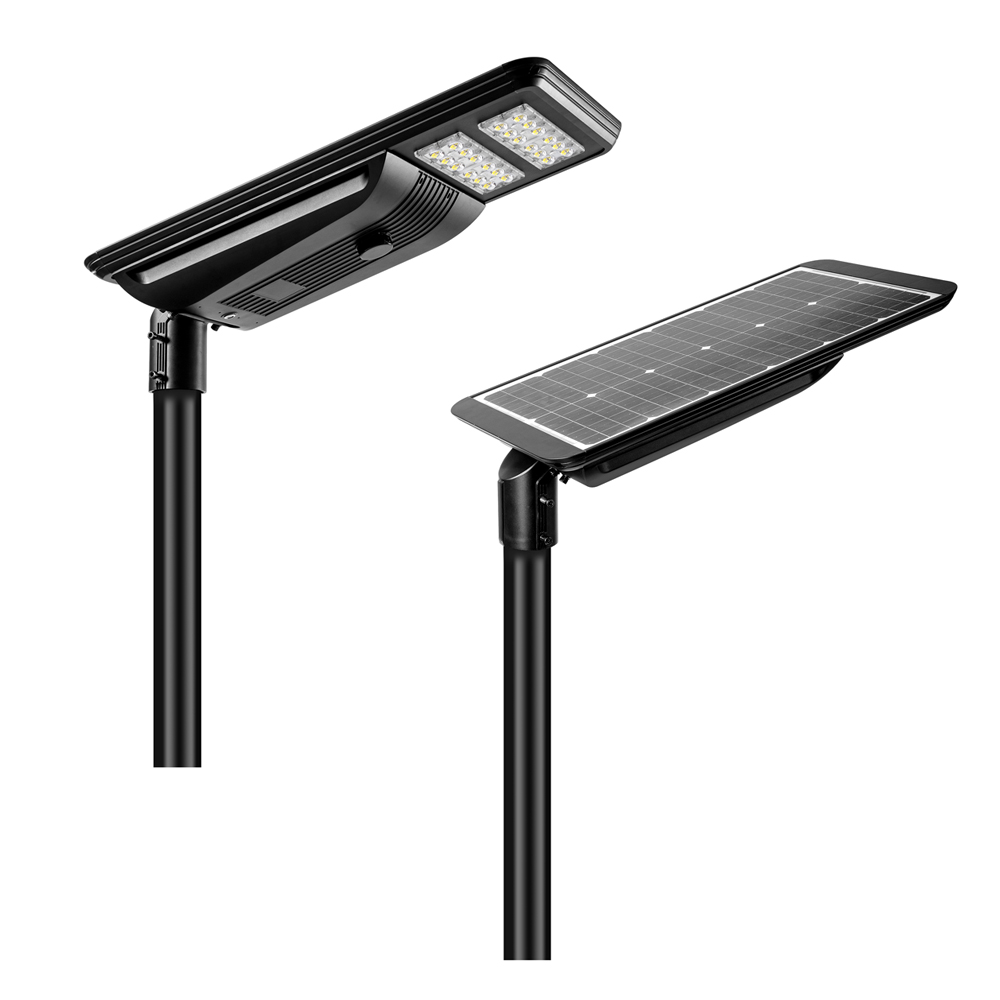

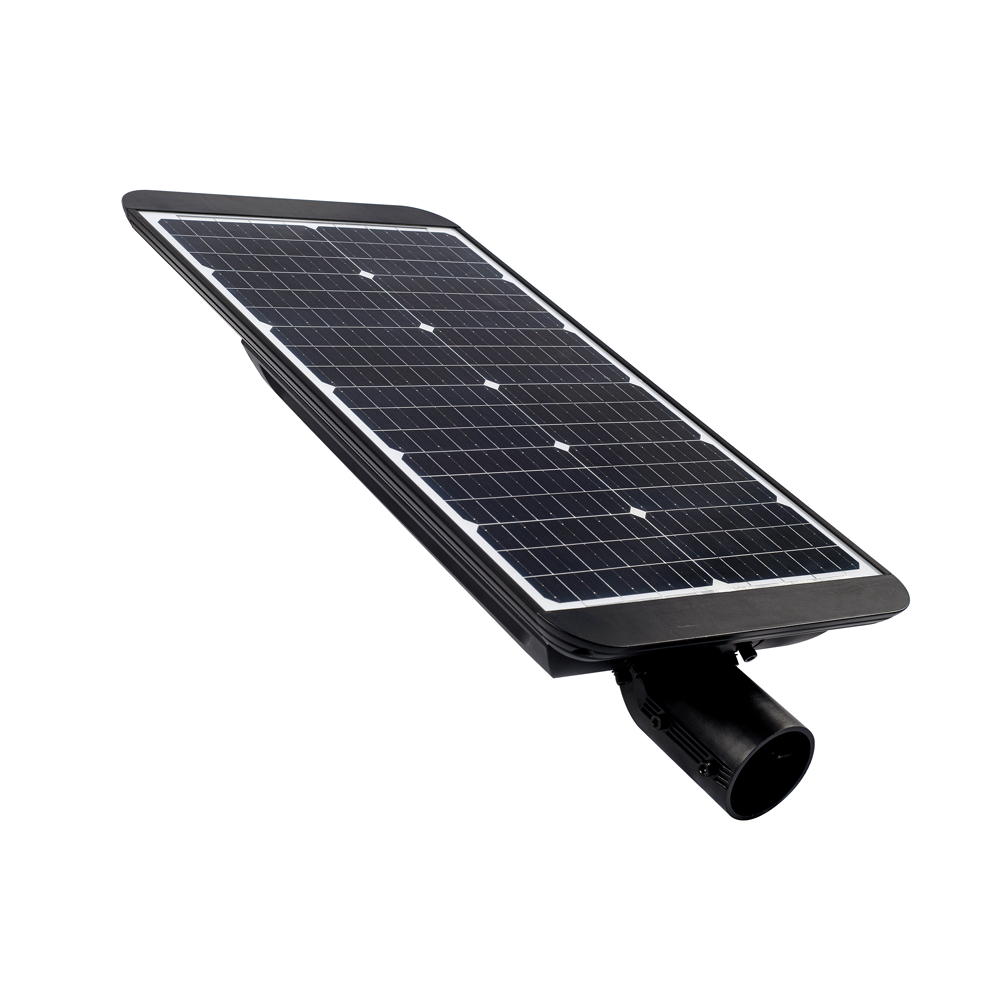

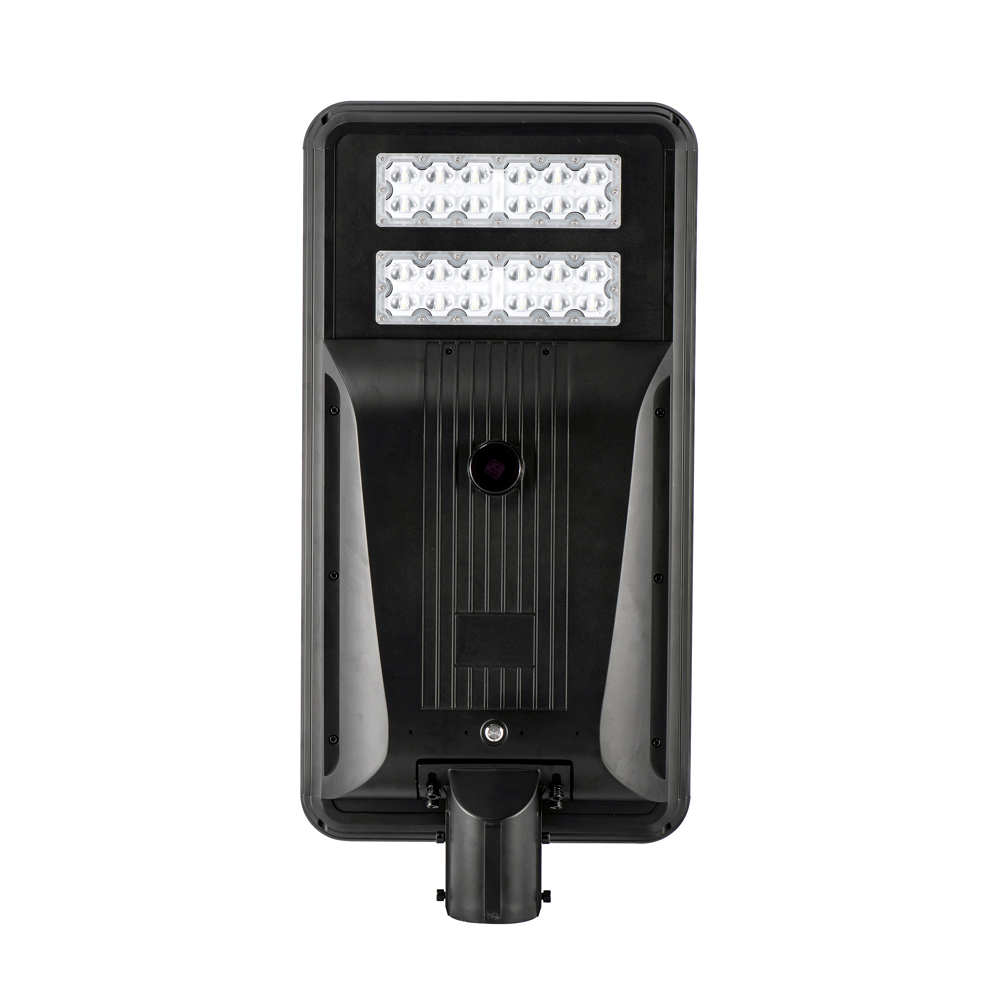

30W All in one solar LED Street Light

Short Description:

  • Power(W):30W
  • LED Chip: Four-core SMD3030
  • Light Efficiency:200 lm/w
  • Luminous Flux:6000 Lumens
  • CCT:2700k ~ 6500K
  • Ra(CRI):80
  • Protection:IP65
  • Control method:Human body induction + light control
  • Lifespan(hour):50000
  • Certificate:CE, RoHS,IEC,LM79, LM80
  • Warranty: 3~5 Years


  • Shipping Port: Shenzhen
  • Description: All in one solar LED Street Light
  • Model: LL-ASSLB-30W
  • Product Detail

    Product Tags

    ASSLB 30-120W 5

    Features:

    1. All-in-one LED solar street light is a new generation solar street lighting which integrate all parts into one fixture to provide easy, flexible and convenient installation and application.
    2. 0 electricity fee, no wiring required, work continuously for 3-5 rainy and cloudy days.
    3. All in One solar lighting system designed for cost-effective lighting for small to medium spaces. Reliability and easy installation. All key components are integrated within the solar panel and light head.
    4. The design of the detachable battery compartment reduces maintenance difficulty and cost, which is conducive to the sustainable use of the product.
    5. It uses an intelligent MPPT controller to maximize solar power capture through a powerful and compact Lithium-Ion battery system, and a motion sensor to adjust light brightness and preserve battery power.
    6. Removable battery compartment for easy battery replacement, reducing maintenance time and maintenance costs.
    7. High brightness Lumileds Philips 3030 LED chips up to 200lm/w ,super brightness ,reduce light decay.
    8. Warranty: 3-5years.

    function

    Specification

    Model NO. LL-ASSLB-30W
    LED Chipset SMD3030 LED
    Chipset Q'ty 96 PCS
    Light Efficiency 200 LM/W
    Lumen 6000LM
    Color Temperature 3000K-6500K
    CRI >70
    LED Lifespan 50000H
    Electrical characteristic Rated Power 30W
    Solar Panel Power 18V/50W
    Lithium Battery 3.2V 72 AH
    Controller MPPT
    Illuminance value >25LUX
    Control method Motion sensor + Time control+Auto on/off
    Discharging Time 12 hours a night, can be on for 3-5 rainy days
    Mechanical Specification Light body size 773*408*135mm
    Net Weight 10.5 kg
    Mounting Height 5-7 M
    Packing Information Q'ty/carton 1 set / carton
    Carton Size 995*460*130mm
    Gross Weight 12 kg

    Size:

    ASSLB 30-120W size

    Unit: mm

    Application:

    All in one solar led street light is used for Courtyard, Garden, Park, Street, Roadway, pathway, Parking Lot, Private road, Sidewalk, Public square, plaza, Campus, Farm & Ranch, Perimeter Security, Wildlife area, Remote Area, Military Base, and so on.
