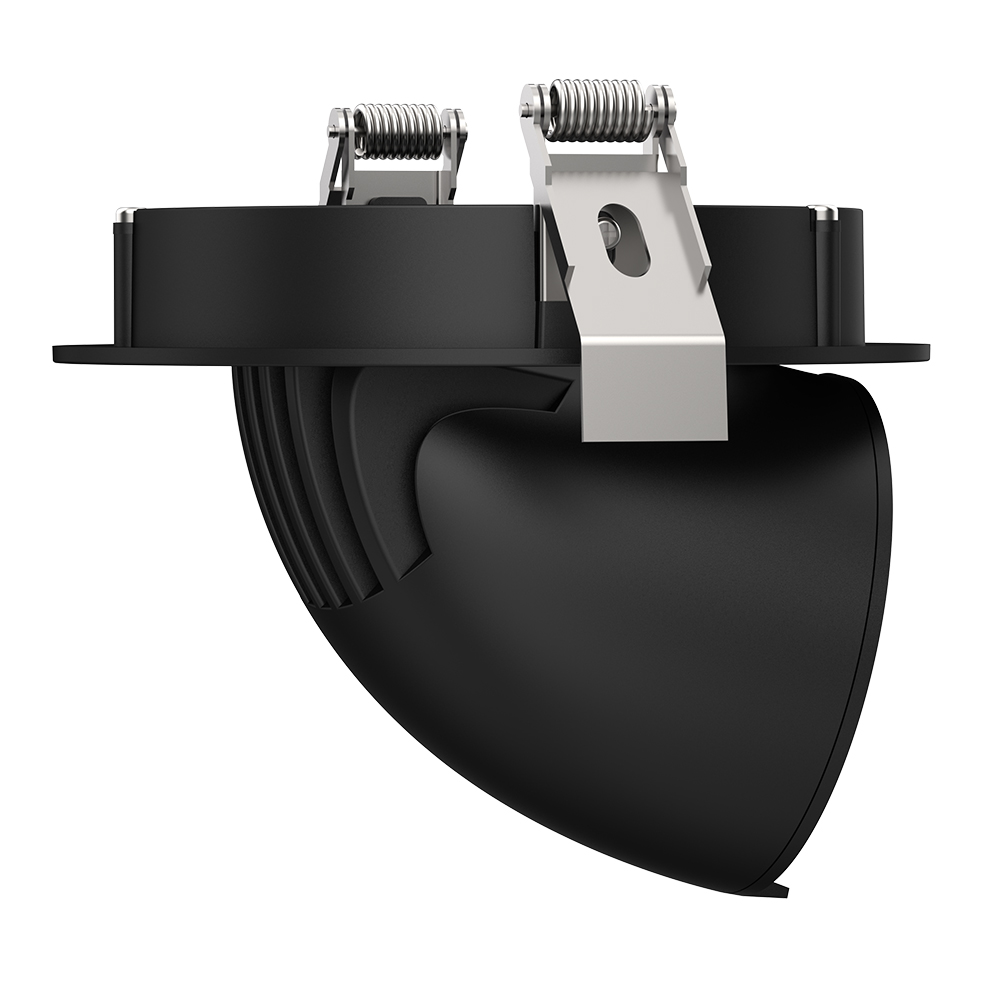

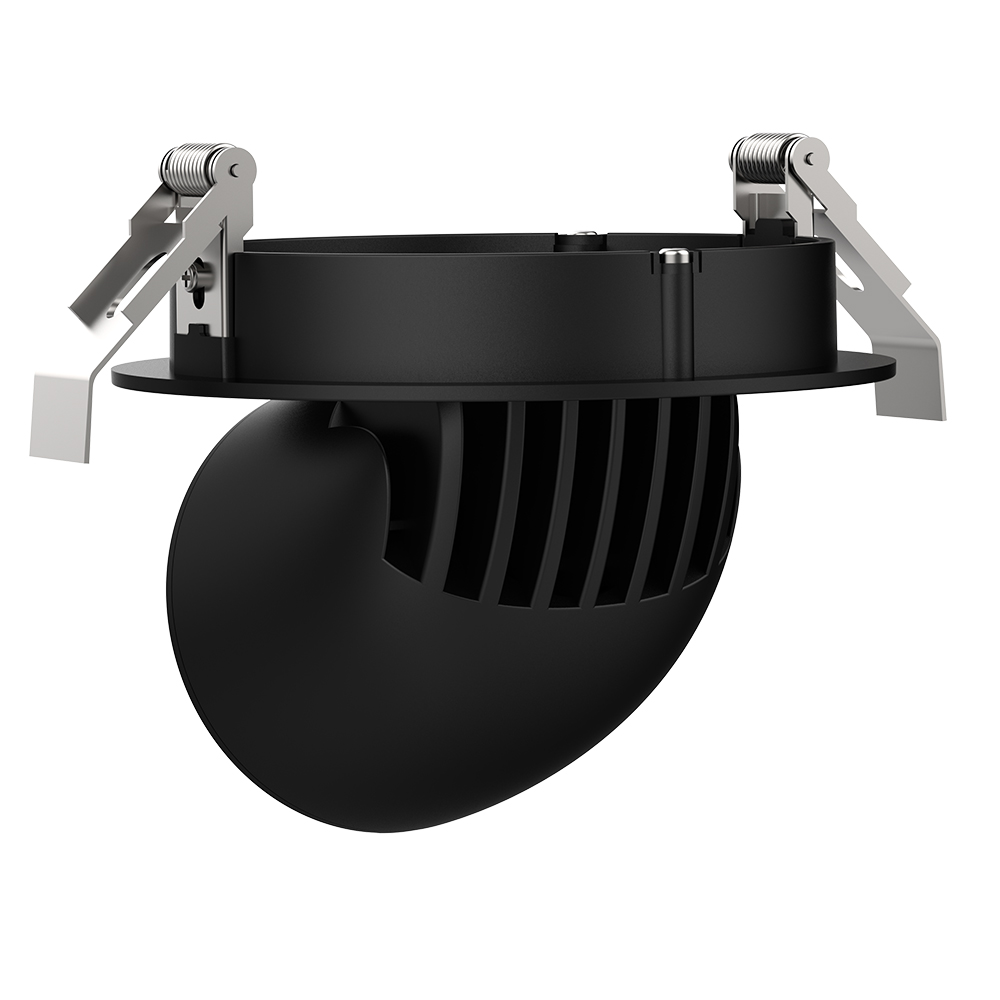

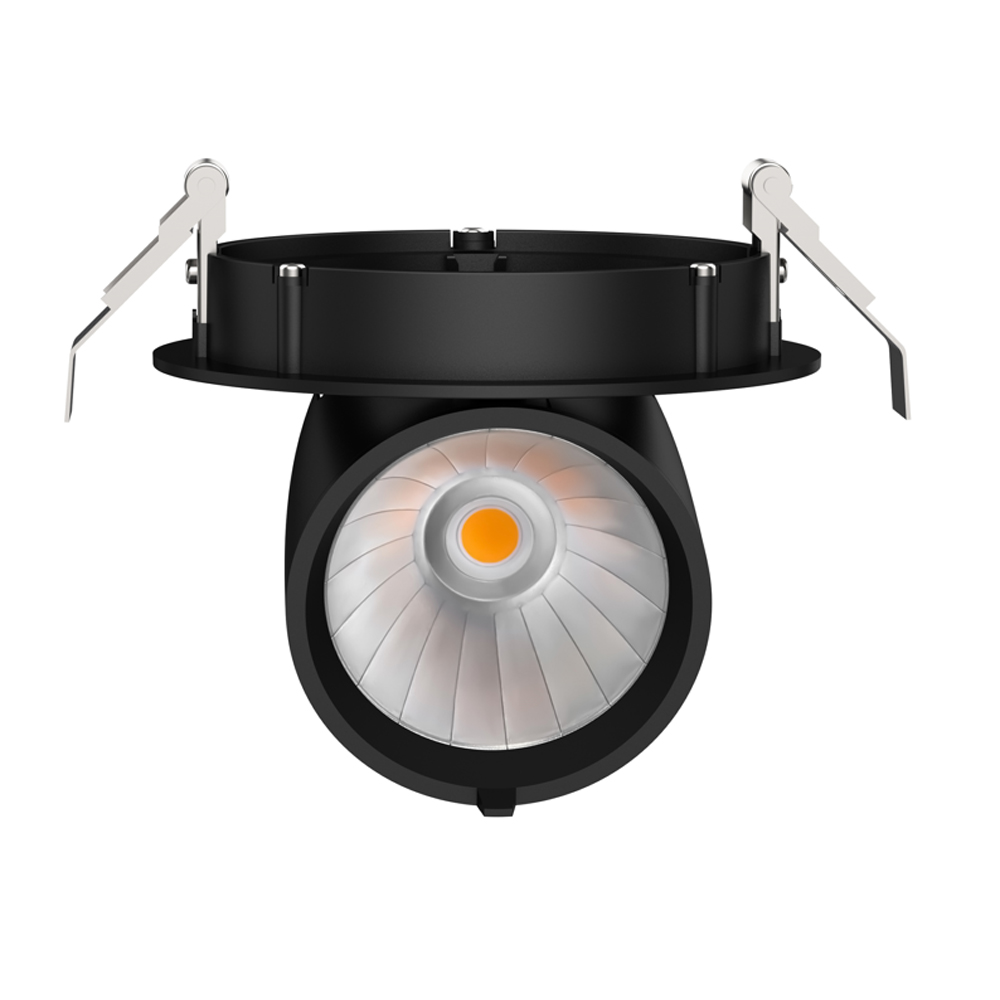

25W, 30W Gimbal LED downlight

Short Description:

  • CRI: 80+ ,90+(3000K/4000K/5000K)
  • LED brand: Bridgelux, CREE, Luminus
  • Beam angle: 15° / 24° / 38° / 60° are available
  • Adjustable: Continuous 350° rotation and 90° pivot.
  • Die-casting aluminum housing
  • Good quality driver, flicker-free, PF>0.95
  • High luminous efficiency: 80-140lm/W @CRI80 (whole lamp)
  • Wattage: 15W, 10W, 20W, 25W, 30W, 35W, 40W and 45W

  • Shipping Port: Shenzhen
  • Description: 25W, 30W Gimbal LED downlight
  • Product Detail

    Product Tags


    1.The directional fashionable integrated Gimbal LED downlight is specifically designed to achieve a pleasant and highlight image in commercial lighting.

    2. The Kit includes a flicker-free driver and a die-casting aluminum integrated cooling radiator and solid mounting clips. The housing is finished with an internal reflector and tempered glass that provides glare free and uniform light distribution.

    3. The housing is IP44 and completely closed so that insects can not penetrate.

    4. With a lifespan of up to 50,000 hours this luminaire is ideal for lighting systems in shops, museums, art galleries, exhibition halls, libraries, bakeries and many other commercial or private applications.


    Model LL-GDL160130-25W LL-GDL160130-30W
    Power(±10%) 25W 30W
    Product Dimension D160*H130
    Cut out D145mm
    Input AC200-240V / AC90-130V
    Dimmable DALI, TRIAC, O/1-10V, DMX, RF, ZigBee
    Luminous Efficacy 80-140lm/W @CRI80 (whole lamp)
    PF >0.9
    LED Type Bridgelux
    LED Q‘ty COB
    CCT(K) 2700K/3000K/4000K/5000K/6000K
    CIR(Ra) 80, 90, 97
    Beam angle 15° / 24° / 38° / 60°
    Working Temperature -20℃~45℃
    Storage Temperature -20℃~45℃
    Adjustable Adjustable
    Housing color White / Black
    IP Grade IP44
    Body Materials Aluminum Alloy
    Certificate CE, Rohs


    Unit: mm


    LED downlight is widely used for places of high requirement of lighting, such as library, shopping mall, hotel, museum, gallery, experience center, commercial building, etc.
