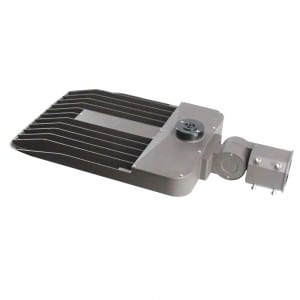

200W Us Parking Lot Shoebox Light 200 watt shoe box for tennis court lamp lighting , 26000lumens replaces 400W HID

Short Description:

  • Power: 200W
  • High efficacy,130lm/w.
  • Universal voltage AC100-277V 50/60Hz.
  • Using high quality SMD2835 chips.
  • High Power Factor >0.9, Low THD Driver.
  • Simple brown appearance, surface anodized, without fading and corrosion.
  • Excellent Optics design, greatly improve the light utilization and evenness.
  • Available with 0-10V dimmable, Photocell sensor, Microwave motion sensor.
  • Dust-proof and waterproof, IP65.
  • 5 years Warranty.


  • Shipping Port: Shenzhen
  • Description: Us Parking Lot Shoebox Light
  • Model: LL-SL-200W-4S
  • Product Detail

    Product Tags

    shoebox light application

    200W LED Shoebox fixture - 26000 lumens - replaces 400W HID.

    Our LED Shoebox Fixtures are designed to replace Metal Halide and High Pressure Sodium shoebox lights in parking lots and other public areas. Shoe box lighting is an effective way to illuminate large parking areas with ease. Fixture placement, along with the right optics, can lead to a widespread scope of lighting that is powerful and effective. With our collection of LED shoe box light fixtures, find the perfect way to illuminate parking lots of any size!

    Features:

    1. Universal Constant Current Voltage 100-277VAC, 50/60Hz.
    2. The structural design with high strength, high efficient reflector and tempered glass shape can ensure product heat dissipation, water resistance, impact resistance and other comprehensive performance.
    3. Power factor is >0.9.
    4. Temperature of Working Condition: -40℃+40℃.
    5. Storage temperature: -40℃+90℃.
    6. Sealing with glue, the protection grade is IP65. Installing with breathing valve, which can clean up the moisture inside of lamp and keep balance of pressure difference between lamp inside and outside.
    7. 50,000 hours lifetime

    Specification:

    Model LL-SL-200W-4S
    Power 200W
    Input Voltage 100-277VAC
    Frequency 50/60Hz
    Output Current  1.45*2A
    Power Factor ≥0.9
    Total Harmonic Distortion <20%
    Color Temperature 3000-6500K
    Luminous Flux 26000lm
    Luminous Efficacy 130 lm/w
    CRI >70
    Raw material Aluminium + PC
    Beam Angle 80*150°
    Light Transmittance 0.92
    IP Level IP65
    Operating Temperature -40~40℃
    Storage Temperature -40~90℃
    Lifespan 50,000h
    Dimension 438*310*72mm
    Net Weight 4.3 kg
    Gross Weight 5.86 kg
    Carton Size 655*355*120mm

    Options:

    • Slip fitter Mount
    • Trunnion Mount
    • Straight Arm Mount
    • Photocell Option
    • Motion Sensor Option
    • Dimming: 0-10V

    Size:

    150w 200w Led Shoebox Light size

    Unit: mm/in

    Application:

    Perfect for parking lots, roadways, car dealerships, campuses, parks, and as a replacement for street lights and vapor lamps.

    LED shoebox application
