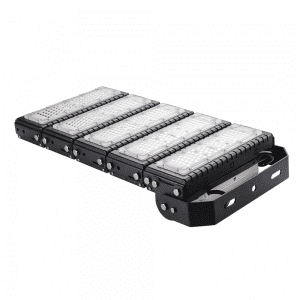

100W LED Floodlight 100 watt led flood lamp bulb replacement Landscape Wall Lights

Short Description:

  • Power: 100W
  • Chipset: Philips 3030 LED
  • Lumen efficacy: upto 130lm/w, energy saving.
  • Driver: Meanwell driver, good quality.
  • Beam angle: 30°/ 60°/ 90° Beam Angle options
  • PC Lens and IK08 level for whole lamp
  • Material: Adopt 1060 aluminum with excellent heat conductivity coefficient.
  • 5 years warranty.

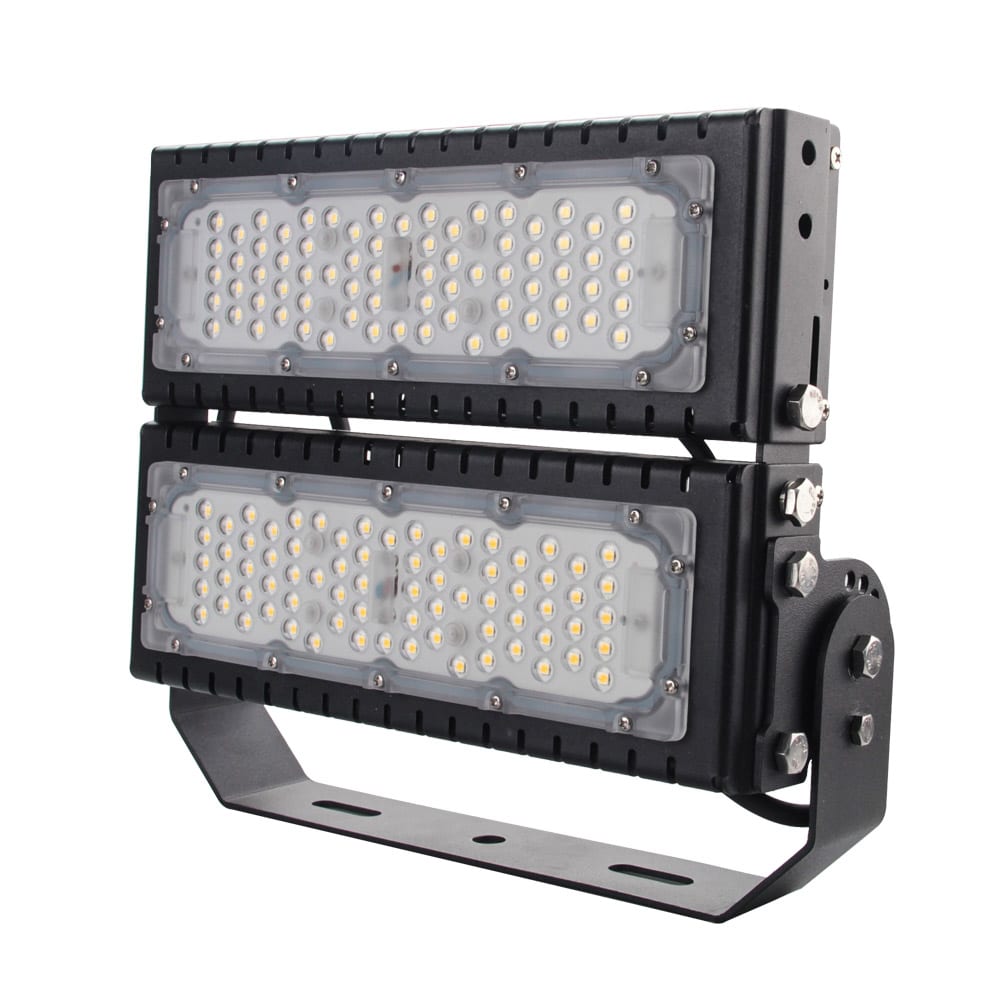

  • Item: 100W LED Floodlight
  • Model: LL-FL-100W-4J
  • Product Detail

    Product Tags

    led flood light application

    Description:

    LOWCLED LED floodlight 4J series is a new type of LED lighting source. Compared with traditional floodlights, products developed on the basis of traditional floodlights have high thermal conductivity, low light decay, pure light, and no ghosting. Energy saving, environmental protection, long service life, etc.

    Specification:

    Model LL-FL-100W-4J
    Power 100W
    Input Voltage 100-240VAC 50/60Hz
    Frequency 50/60Hz
    Power Factor ≥0.9
    Material AL1060 +PC
    Housing Color black
    Collision Protection Level IK08
    Color Temperature 3000-6500K
    Luminous Flux 13000lm
    Luminous Efficacy 130 lm/w
    CRI >70
    Beam Angle 30°/ 60°/ 90°
    IP Level IP65
    Operating Temperature -30~50
    Lifespan 50,000h

    Features:

    • High system efficacy up to 130LM/W, superior illumination performance
    • Optimized weight and size due to compact design
    • Excellent design isolates LED module from driver for long life
    • PC lens protects fixture from moisture, dirt, and bugs
    • 3000K, 400K, 4500K , 5000K and 6000K CCT
    • Environmentally friendly powder coatings
    • Suitable for uplighting & downlighting
    • Reduces energy consumption over 80%

    Housing & Finish

    • Die-casting Aluminum heat sink
    • RAL & custom colors available



    Optics

    • Beam Angel: 30/60/90° wide beam with uniform distribution

    Compliance

    • LM-79 & LM-80 test reports
    • CE & RoHS available

    Ratings

    • L70>100,000 hours at 25℃(Tc), compliant with IESNA TM-21
    • Operating Temperature Rated at -30°C to 50°C
    • Storage Temperature Rated at -55°C to 65°C

    Warranty

    • 5-year limited system warranty
    * Please refer to LOWCLED warranty term for complete information.

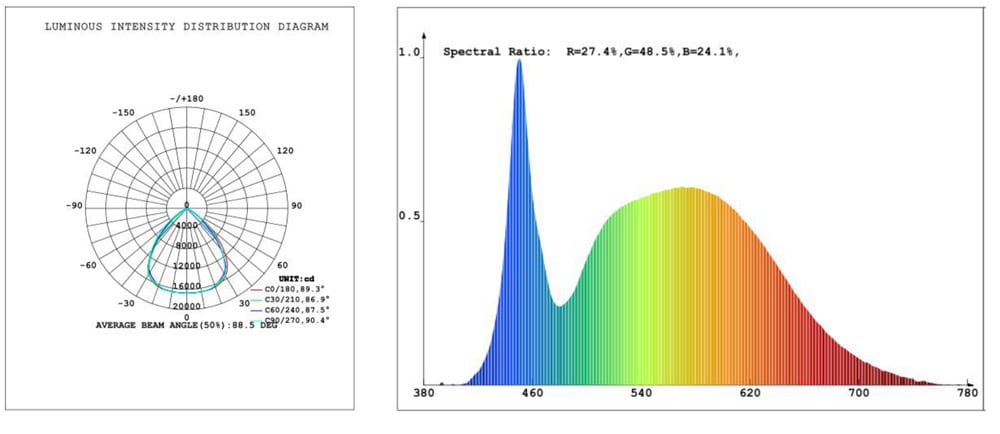

    Light Distribution Curve

    LED FLOOD LIGHT 4j Light Distribution Curve

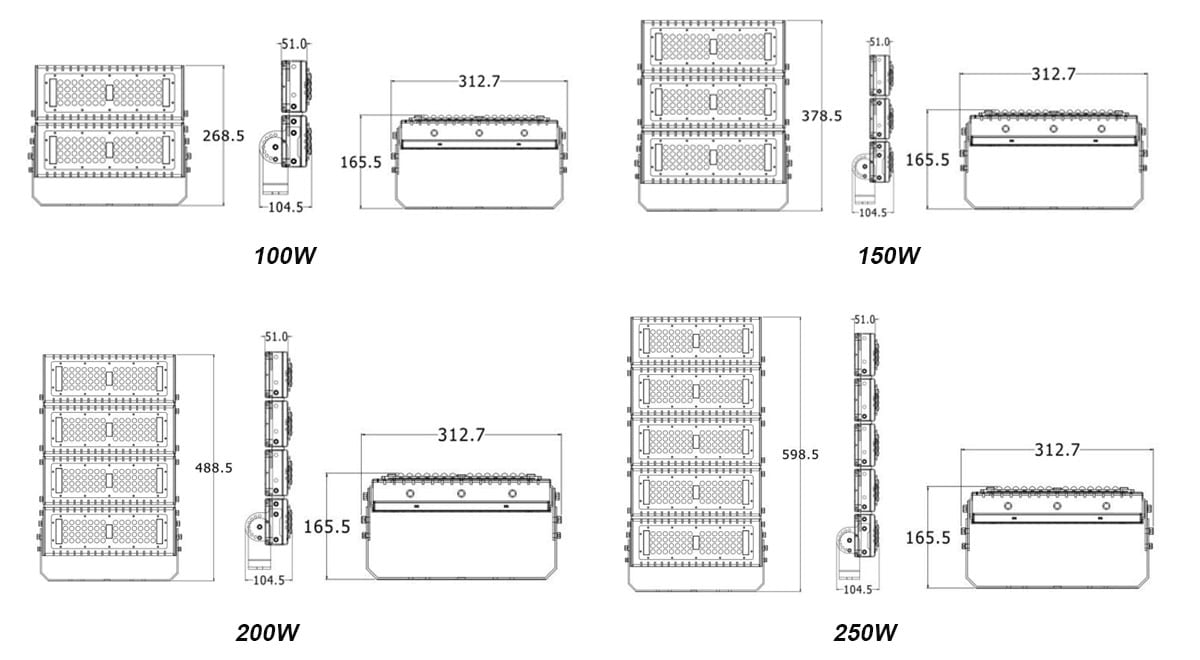

    Size:

    LED FLOOD LIGHT 4j SIZEUnit: mm

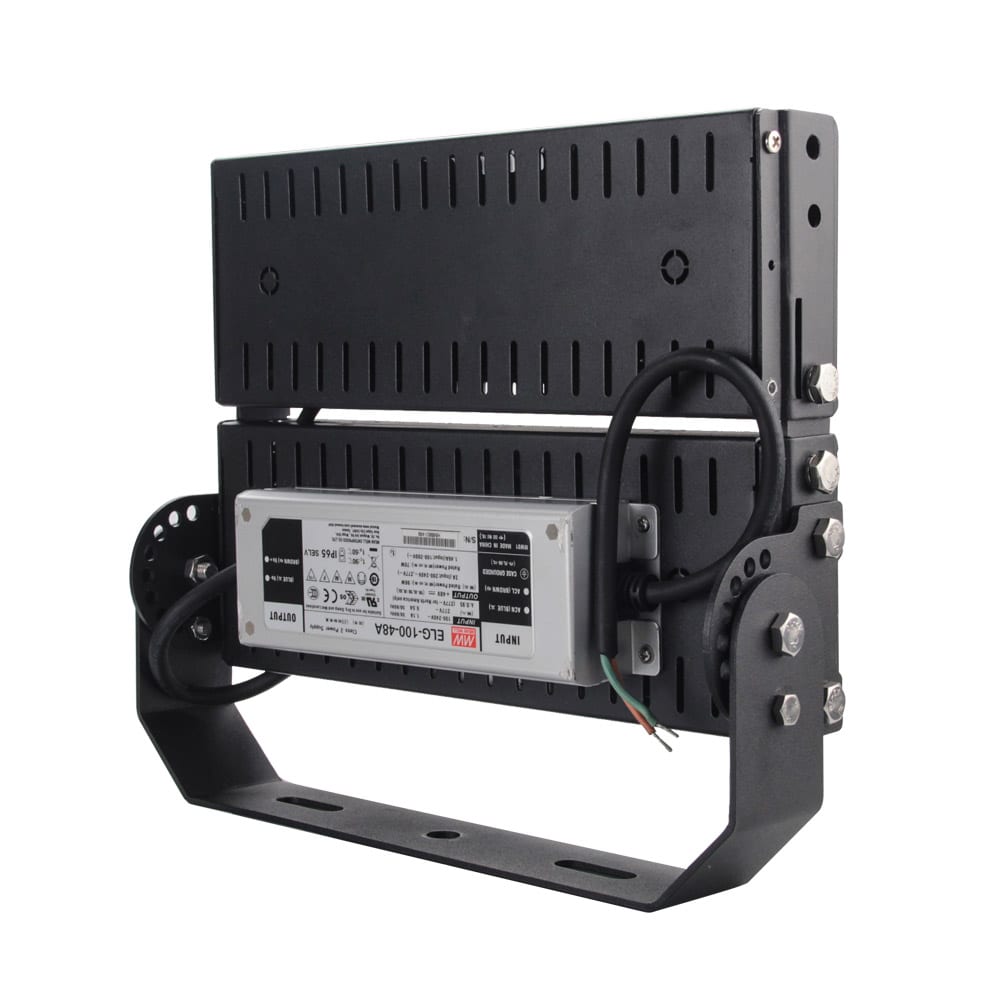

    Our advantages:MEANWELL-DRIVER





    Meanwell driver

    We use MEANWELL driver as one of most important components.

    Structure

    ● Heat Sink: Air convection holes on the radiator module can accelerate air flow to achieve excellent heat dissipation radiator.
    ● Bracket: Adjustable angle ranges from 30° to 150°.
    ● Spliced Module: Standard radiator module can be connected into different wattage per customers' requirement, shorten lead time.

    floodlight

    Application:

    Lowcled led flood light is widely used at Football Stadium,Gymnasium, Harbor, Tunnel, Architectural, Square. Ideal for illuminating building facade, large trees, walls, industrial yard, recreational area, and other general purpose area application.

    led floodlight application
